Material Selection Guide: Optimizing Screening Performance in Mining Operations
2025-09-19
In mineral processing operations, screen panel selection significantly impacts productivity, maintenance costs, and separation efficiency. This technical evaluation examines three primary screening materials - steel, polyurethane (PU), and rubber - across critical performance parameters.
Material Composition & Manufacturing Processes
Steel Screens
Construction: Woven/welded stainless steel wires
Key characteristic: No structural reinforcement required
Density: 7.8 g/cm³ (highest among options)
Polyurethane Panels
Production: Cast from pre-polymer in open molds
Hardness range: 85-95 Shore A
Density: 1.2 g/cm³ (lightest option)
Rubber Screens
Manufacturing: Vulcanized under heat/pressure
Material options: Natural or synthetic compounds
Typical hardness: 40-65 Shore A
Performance Benchmarking
Parameter
Steel Advantage
PU Strength
Rubber Superiority
Open Area Ratio
35-45% (highest)
25-35%
20-30%
Wet Material Handling
Poor
Moderate
Excellent
Service Life
3-6 months
8-12 months
12-18 months
Noise Reduction
Minimal
10-15 dB
8-12 dB
Operational Considerations
Anti-blinding Performance:
Steel: Highly susceptible to material buildup
PU: Moderate resistance (modular replacement helps)
Rubber: Exceptional self-cleaning properties
Impact Resistance:
Rubber withstands 2X more impact than PU
Steel vulnerable to permanent deformation
Application-Specific Recommendations
Primary Screening (Large Aggregates)
Preferred: Steel for high throughput
Alternative: Rubber for wet conditions
Fine Material Separation
Optimal: PU for precise sizing
Secondary: Rubber for sticky materials
High-Abrasion Environments
Best Performer: Rubber (40-60 Shore A)
Economic Choice: PU with wear-resistant formula
Case Study Highlights
Australian Aggregate Plant:
Challenge: Chronic blinding with steel/PU
Solution: 40 Shore A rubber panels
Result: Zero blinding after 90 days
Molybdenum Processing Facility:
Implementation: 60 Shore A (feed) + 40 Shore A (discharge)
Outcome: Eliminated blinding, extended wear life
Economic Analysis
Total Cost of Ownership (3-year period):
Steel: $18/m² (frequent replacement)
PU: $22/m² (balanced performance)
Rubber: $15/m² (longest lifespan)
Contact us ↓
Annie Lu
Huatao Group
annie.lu@huataogroup.com
Mobile: 0086 18032422676 ( Whatsapp/Wechat/Viber)
https://wa.me/008618032422676
Web:www.tufflexscreen.com
www.huataoscreen.com
www.puscreenpanel.com
Our Hot-selling Products:
HUATAO Hot-Selling Polyurethane Product List as below:

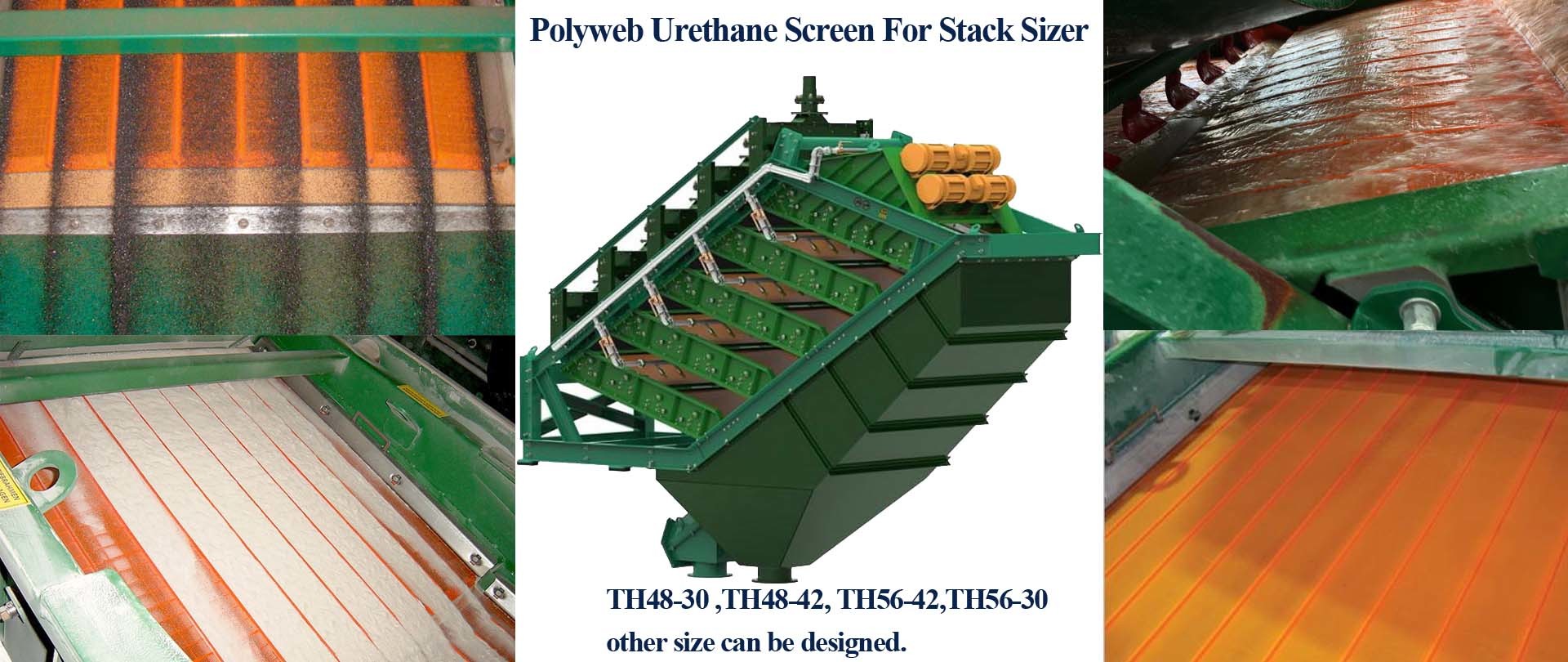

Polyweb Urethane Screen
Tufflex Screen
Polyurethane Dewatering Screen Mesh
WS 85 Modular Screen
Polyurethane Screen Panels
Rotex Replacement Screens
Rubber Screen Panel
Vibrating Screen Mesh
Self cleaning Wire Mesh
Shale Shaker Screen
Zobacz więcej
Polyurethane vs. Rubber Screen Panels: A Technical Comparison for Mineral Processing Operations
2025-09-19
.gtr-container-7f8e9d {
font-family: Verdana, Helvetica, "Times New Roman", Arial, sans-serif;
color: #333;
line-height: 1.6;
padding: 15px;
box-sizing: border-box;
max-width: 100%;
overflow-x: hidden;
}
.gtr-container-7f8e9d p {
margin: 0 0 1em 0;
font-size: 14px;
text-align: left;
}
.gtr-container-7f8e9d .gtr-heading-main {
font-size: 18px;
font-weight: bold;
margin: 1.5em 0 1em 0;
text-align: left;
}
.gtr-container-7f8e9d .gtr-heading-sub {
font-size: 16px;
font-weight: bold;
margin: 1em 0 0.5em 0;
text-align: left;
}
.gtr-container-7f8e9d .gtr-italic {
font-style: italic;
display: block;
margin-bottom: 0.5em;
}
.gtr-container-7f8e9d ul,
.gtr-container-7f8e9d ol {
list-style: none !important;
margin: 0 0 1em 0 !important;
padding: 0 !important;
}
.gtr-container-7f8e9d ul li,
.gtr-container-7f8e9d ol li {
position: relative;
padding-left: 25px;
margin-bottom: 0.5em;
font-size: 14px;
text-align: left;
}
.gtr-container-7f8e9d ul li::before {
content: "•";
position: absolute;
left: 0;
color: #007bff;
font-weight: bold;
font-size: 1.2em;
line-height: 1;
}
.gtr-container-7f8e9d ol li::before {
content: counter(list-item) ".";
counter-increment: none;
position: absolute;
left: 0;
color: #007bff;
font-weight: bold;
width: 20px;
text-align: right;
}
.gtr-container-7f8e9d .gtr-checkmark-list li::before {
content: "✔";
color: #28a745;
font-weight: bold;
}
.gtr-container-7f8e9d img {
max-width: 100%;
height: auto;
display: block;
margin: 1em auto;
}
.gtr-container-7f8e9d .gtr-image-group {
display: flex;
flex-direction: column;
gap: 15px;
margin-bottom: 1em;
}
.gtr-container-7f8e9d .gtr-table-wrapper {
overflow-x: auto;
margin: 1em 0;
}
.gtr-container-7f8e9d table {
width: 100%;
border-collapse: collapse;
border-spacing: 0;
margin: 0 !important;
word-break: normal;
overflow-wrap: normal;
}
.gtr-container-7f8e9d th,
.gtr-container-7f8e9d td {
border: 1px solid #ccc !important;
padding: 10px 15px !important;
text-align: left !important;
vertical-align: top !important;
font-size: 14px;
}
.gtr-container-7f8e9d th {
font-weight: bold !important;
background-color: #f0f0f0;
}
.gtr-container-7f8e9d tr:nth-child(even) {
background-color: #f9f9f9;
}
.gtr-container-7f8e9d a {
color: #007bff;
text-decoration: underline;
}
.gtr-container-7f8e9d a:hover {
text-decoration: none;
}
@media (min-width: 768px) {
.gtr-container-7f8e9d {
padding: 20px;
}
.gtr-container-7f8e9d .gtr-image-group {
flex-direction: row;
flex-wrap: wrap;
justify-content: space-between;
}
.gtr-container-7f8e9d .gtr-image-group img {
width: calc(50% - 7.5px);
margin: 0;
}
.gtr-container-7f8e9d .gtr-image-group.gtr-image-group-3 img {
width: calc(33.333% - 10px);
}
.gtr-container-7f8e9d .gtr-image-group.gtr-image-group-2 img {
width: calc(50% - 7.5px);
}
}
Modern mining and aggregate operations require precise material separation solutions. The choice between polyurethane (PU) and rubber screen panels significantly impacts operational efficiency, maintenance costs, and productivity. This analysis compares both materials across eight critical performance parameters to guide optimal selection.
Material Properties & Performance
Structural Characteristics
PU Panels:
70-85% open area with geometric aperture precision (±0.2mm)
Shore 90-95A hardness with elastic recovery >92%
Density: 1.2 g/cm³ (30% lighter than rubber)
Rubber Panels:
40-60% open area with flexible aperture deformation
Shore 60-70A hardness with permanent set 50mm sharp aggregates
Operational Considerations
Factor
PU Advantage
Rubber Advantage
Temperature
-40°C to 80°C
-30°C to 150°C
Noise Reduction
10-15 dB lower
5-8 dB reduction
Chemical Resistance
Resists acids/alkalis
Vulnerable to oils
Energy Consumption
18% lower kWh/ton
Standard load
Economic Analysis
Total Cost of Ownership:
PU: Higher initial cost (+40%) but 60% lower replacement frequency
Rubber: 30% cheaper upfront but 2X more annual replacements
Case Example:A copper concentrator achieved 22% cost savings by switching to PU for fine screening (-$18/ton), while maintaining rubber for primary scalping.
Application Guidelines
Choose PU when:
Processing abrasive materials 50mm hot materials (e.g., slag)
Needing rapid panel replacement capability
Working with limited capital budget
Technical Support & Customization
Leading manufacturers offer:
Hybrid designs (PU tensioning with rubber borders)
Temperature-stabilized PU formulations (up to 110°C)
Modular systems for mixed-material operations
Conclusion
The optimal selection balances:
Material characteristics (size, abrasiveness, temperature)
Process requirements (throughput, precision)
Economic factors (TCO, ROI)
Environmental conditions
